Number Datatypes

Both numeric data types (number and slider) are stored as a number in a DOUBLE column in the database. To set numeric data, a number must be passed to the according setter. The two fields merely differ in their input widgets and the fact that the slider has a min/max value and step size, which the numeric field does not have.

Numeric

The numeric data field can be configured with a default value.

Numeric Range

The numericRange object field consists of two numeric fields (minimum and maximum) and so can be configured the same way. Programmatically the values are represented by a NumericRange Object.

Slider

In Pimcore Studio a slider can be used as a horizontal or vertical widget. It needs to be configured with a min and max value, the increment step and decimal precision.

Quantity Value

This is a numeric datatype that also allows to specify a unit.

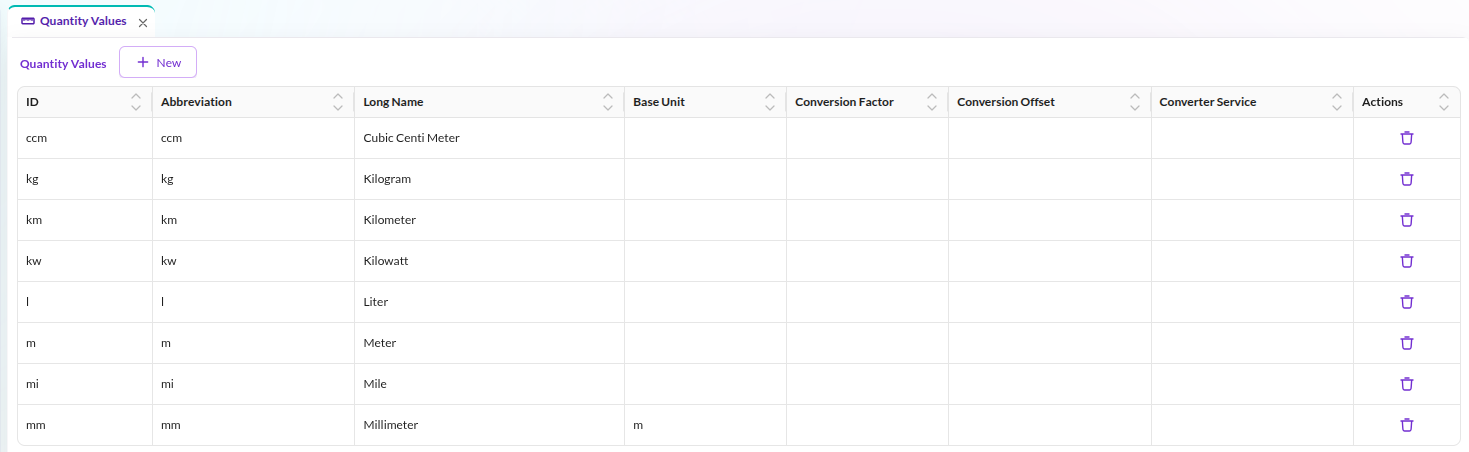

Start off with defining a global list of known units via Data Management -> Data Model Definitions -> Quantity Values.

This can also be achieved programmatically.

$unit = new Pimcore\Model\DataObject\QuantityValue\Unit();
$unit->setAbbreviation("km");   // mandatory
$unit->setLongname("kilometers");
$unit->setGroup("dimension");
$unit->save();

Import and export units as a JSON file. For importing there is also a command: pimcore:definition:import:units

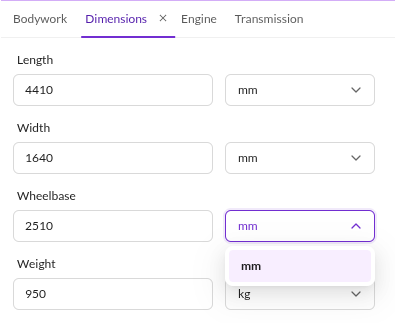

In the class editor, restrict the list of valid units at the field level. Only those units will be available in the editor then.

The following code snippet shows how to set a value.

use Pimcore\Model\DataObject;

$parent = DataObject::getByPath("/");

$object = new DataObject\Test();
$unit = DataObject\QuantityValue\Unit::getByAbbreviation("km");
$object->setKey("test2");
$object->setParent($parent);
$object->setHeight(new DataObject\Data\QuantityValue(27, $unit->getId()));
$object->save();

Quantity Value Range

The quantityValueRange object field is basically the same as the quantityValue field, except that is has two input fields (minimum and maximum). Programmatically the values are represented by a QuantityValueRange Object.

Quantity Value Unit Conversion

Static unit conversion

You can also convert values between units. Therefore you have to define base units, conversion factors and offsets. All units with the same base unit can be converted to each other.

Factor and offset define how to convert the current unit to the base unit.

Example: You have physical length units meter (m), millimeters (mm) and inches ("). Then your quantity value unit configuration could look like:

Name	Abbreviation	Baseunit	Factor
Meter	m
Millimeter	mm	m	0.001
Inch	"	m	0.0254

When you now have a quantity value field in your data objects and change the unit to a unit which has the same base unit as the unit before the value gets automatically converted. For example when you have 2 m and change the unit to "mm" then the value will automatically change to 2000.

You can also trigger conversion programmatically:

$originalValue = new QuantityValue(3, Unit::getByAbbreviation('m')->getId());
$converter = $this->container->get(\Pimcore\Model\DataObject\QuantityValue\UnitConversionService::class);
$convertedValue = $converter->convert($originalValue, Unit::getByAbbreviation('mm'));
// $convertedValue is a QuantityValue with value 3000 and unit mm

Alternatively you can use

$originalValue = new QuantityValue(3, Unit::getByAbbreviation('m')->getId());
$convertedValue = $originalValue->convertTo(Unit::getByAbbreviation('mm'));
// $convertedValue is a QuantityValue with value 3000 and unit mm

or

$originalValue = new QuantityValue(3, Unit::getByAbbreviation('m')->getId());
$convertedValue = $originalValue->convertTo('mm');
// $convertedValue is a QuantityValue with value 3000 and unit mm

Units without base unit are expected to be a base unit itself. That is why in above example configuration meter has no base unit - but you can set it explicitly to meter for clarity.

In quantity value unit configuration there is also the column "offset". This is for unit conversions where addition / subtraction is needed. For example

Name	Abbreviation	Baseunit	Factor	Offset
Degrees Celcius	°C		1.8	-32
Degrees Fahrenheit	°F	°C

These conversion parameters result from the formula °F = °C * 1.8 + 32

The formula used for conversion is: $convertedValue = ($quantityValue->getValue() * $fromUnit->getFactor() - $fromUnit->getConversionOffset()) / $toUnit->getFactor() + $toUnit->getConversionOffset();

Dynamic unit conversion

When conversion factors / offsets change over time (e.g. money currencies) or you want to use an external API you have two opportunities:

1. You could periodically update the factors / offsets in quantity value unit configuration
2. You can create a converter service class

If you prefer the latter you have to create a class which implements \Pimcore\Model\DataObject\QuantityValue\QuantityValueConverterInterface and define a service for this class in your services.yaml. The service name can then be entered in quantity value unit configuration's column "Converter service" for the base unit.

Input Quantity Value

Input Quantity Value is quite similar to Quantity Value except that text values are allowed instead of the strict restriction to numeric values.
