Other Datatypes

Checkbox

A checkbox field can be configured to be checked by default when a new object is created.

It is stored in a TINYINT column in the database with the value 0 or 1.

Pass a bool value to the object's setter to set a checkbox value:

$object->setCheckbox(true);

If inheritance is activated in the corresponding DataObject class, a trashcan icon is displayed next to the checkbox. Use this to reset the checkbox value and restore inheritance from parent objects.

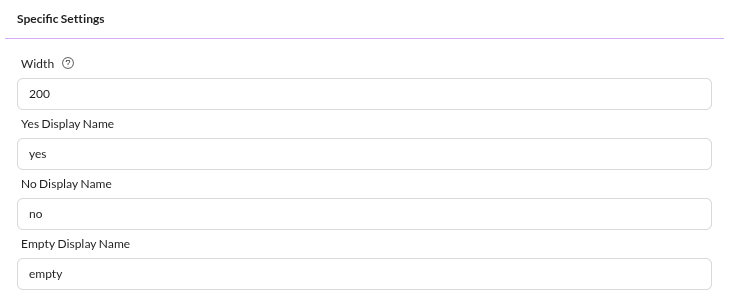

Boolean Select

A Boolean Select is kind of a tri-state checkbox which is rendered as a select datatype in Pimcore Studio. The background is that a checkbox can only have two states. This is especially important when it comes to inheritance. A checkbox treats an empty (never set) value just like the unchecked value. The consequence is then as soon as a parent sets it checked you can not reset it to unchecked in the child nodes anymore. The boolean select takes care of this problem by introducing a third state. The storage values are -1 (for unchecked), 1 (for checked and null for empty. In Pimcore Studio you can specify the display values according to your needs. Default values are yes, no and empty.

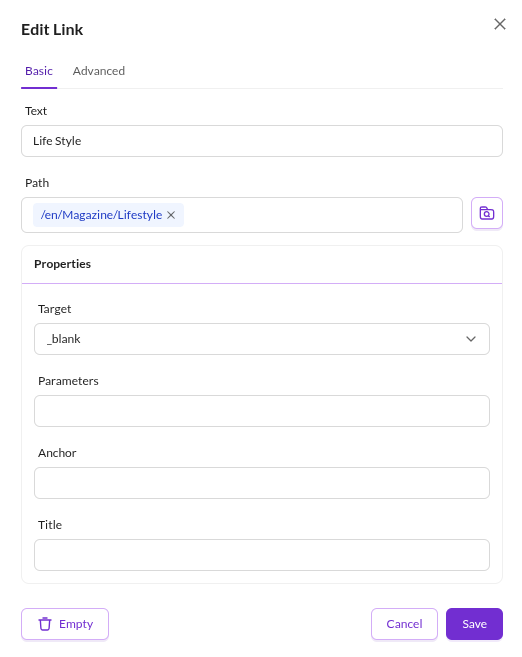

Link

In the UI a link is displayed as text. Edit its details by clicking the button next to the link text. The object class definition has no special configurations for a link field.

The link field uses the Pimcore\Model\DataObject\Data\Link data class. To set a link programmatically, instantiate a Pimcore\Model\DataObject\Data\Link object and pass it to the setter:

$l = new DataObject\Data\Link();
$l->setPath("http://www.pimcore.org");
$l->setText("pimcore.org");
$l->setTitle("Visit pimcore.org");
$object->setLink($l);

In the database the link is stored in a TEXT column which holds the serialized data of an Pimcore\Model\DataObject\Data\Link.

In the frontend (template) you can use the following code to get the HTML for the link.

<?php
$object = DataObject::getById(234);
?>

<ul>
  <li><?= $object->getMyLink()->getHtml(); ?></li>
</ul>

Link Generators

Please also see the section about Link Generators

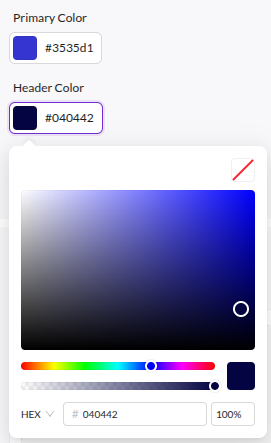

RGBA Color

Stores RGBA values. RGB and Alpha values are stored in two separate columns as hex values in the database.

API Examples:

$o = \Pimcore\Model\DataObject\User::getById(50);
// get the color, can be null!
$color = $o->getMyColor();
// get the RGB part as hex with leading #

var_dump($color->getHex());

// get the RGBA value (with alpha component) has without leading hash
var_dump($color->getHex(true, false));

// get the RGBA value as array (R,G,B 0-255, Alpha 0-1)
var_dump($color->getCssRgba(true, true));

// set the RGBA value
$color->setRgba(0, 0, 255, 64);

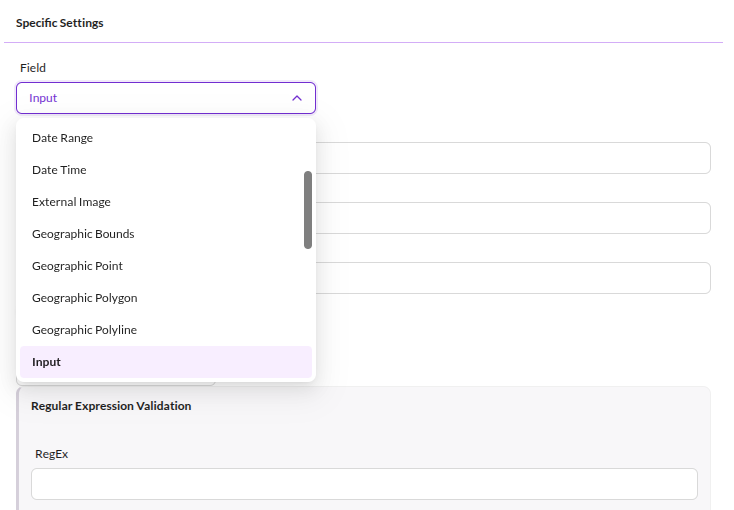

Encrypted Field

Offers data encryption for certain data types.

Prerequisites: generate a secret key by calling vendor/bin/generate-defuse-key and add it to config/config.yaml

Example:

pimcore:
    encryption:
        secret: def00000fc1e34a17a03e2ef85329325b0736a5941633f8062f6b0a1a20f416751af119256bea0abf83ac33ef656b3fff087e1ce71fa6b8810d7f854fe2781f3fe4507f6

Key generation:

Strict Mode

In strict mode (which is the default) an exception is thrown if existing data cannot be decrypted (e.g. because of a key change). You can switch this off by calling

Pimcore\Model\DataObject\ClassDefinition\Data\EncryptedField::setStrictMode(false)

URL Slug

A slug is the human-readable part of a URL that identifies a particular page on a website. For example, if the URL is https://demo.pimcore.fun/slug, then the slug is /slug.

URL slugs are currently not supported inside Blocks & Classification Stores.

This data-type can be used to manage custom URL slugs for data objects, you can add as many fields of this type to a class as you want. Pimcore then cares automatically about the routing and calls the configured controller/action if a slug matches.

You could use the Symfony String component's slugger to generate the slugs.

Slugs cannot contain the characters ? # since they are reserved. For more information check the RFC 3986.

Example

<?php

namespace App\Controller;

use Pimcore\Controller\FrontendController;
use Pimcore\Model\DataObject;
use Symfony\Component\HttpFoundation\Request;

class ProductController extends FrontendController
{
    public function slugAction(Request $request, DataObject\Foo $object, DataObject\Data\UrlSlug $urlSlug): array
    {
        // we use param resolver to get the matched data object ($object)
        // $urlSlug contains the context information of the slug

        return [
            'product' => $object
        ];
    }
}
