Structured Table

Add Structured Table to the Class​

Similar to the table widget, the structured table can hold structured data. But there are a few fundamental differences:

  • The rows and columns are predefined and named.
  • The data type per column can be defined. Possible data types are text, number and boolean.
  • Access structured table data via getters and setters. Pimcore stores the data in a structured format in the database.

You can add structured table component in a class definition. Define rows and column headers to structure the table content.

Structured table definitionStructured table definitionStructured table definition

Use the table in your object as shown below:

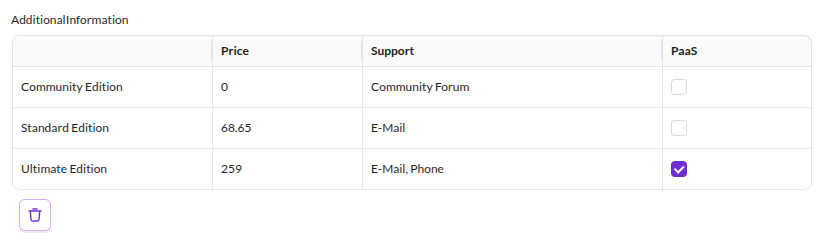

Edit object with structured tableEdit object with structured tableEdit object with structured table

Storage of Structured tables​

Each row and column combination creates a new column in the structured table's database table.

Avoid this data type for tables with many rows or columns. The maximum number of database columns per table applies as a technical restriction.

Using structured table with PHP API​

Access field data using these methods:

/** @var \Pimcore\Model\DataObject\Data\StructuredTable $structuredData */
$structuredData = $object->getAdditionalinfo();

//Returns an associated array of row CommunityEdition with all columns
$structuredData->getCommunityedition();

//Returns an associated array of row CommunityEdition with all columns
$structuredData->getCommunityedition__support();

//Sets the value of the CommunityEdition support column
$structuredData->setCommunityedition__support("Forum");

//Alternative way of setting data to a structured table
$data = [];
$data['communityedition']['opensource'] = true;
$structuredData->setData($data);
