Configuration

Open System → Duplicates Configuration in Pimcore Studio. The screen is admin-only and has two tabs, General and Scope.

Three buttons separate saving from running:

Button	Effect
Save	Persists the configuration. No run is started.
Save & Detect	Persists, then starts an incremental run after a confirmation. Refused before anything is queued if it would break the lowered-floor rule, see Stored vs shown, or the changed-exclusion rule, see Exclusion query (PQL).
Save & Full Detection	Persists, then starts a full run. Confirmed with a destructive-style prompt, because this is also the step that lets stale findings be withdrawn.

Only one run per scope is allowed at a time. The status line above the tabs reports the last run, and a banner tracks a running one, see Runs and Progress.

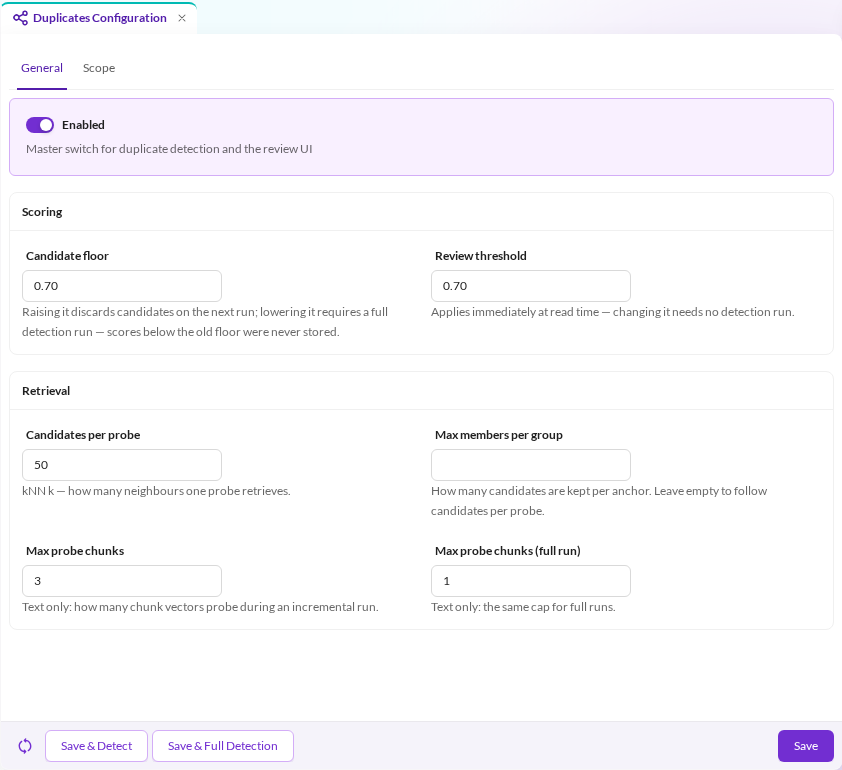

General tab

How strict detection is, and how hard it looks.

Field	Default	Description
Enabled	off	Master switch for detection and the review screens. Switch it on and enable at least one scope.
Candidate floor	0.70	Minimum score stored. Raising it discards candidates on the next run; lowering it requires a full run.
Review threshold	0.70	Minimum score shown, applied at read time to the group's top score and each member's score. Changing it needs no run. It defaults to the candidate floor — show everything stored — because measured near-duplicate findings cluster below 0.85 and a higher default would hide the whole near-duplicate tier. Raise it to quieten the queue once you know your data.
Candidates per probe	50	The kNN k: how many neighbours one probe retrieves.
Max members per group	empty	How many candidates are kept per reference. Empty follows candidates per probe. Below that, retrieval is wasted; above it, the cap is decorative for a single-probe image field. Raising it past k means raising k too, which costs detection time.
Max probe chunks	3	Text only. How many of an element's chunk vectors probe during an incremental run. Cost multiplies by this.
Max probe chunks (full run)	1	The same cap for full runs, deliberately lower because a full pass pays it once per element across the whole scope.

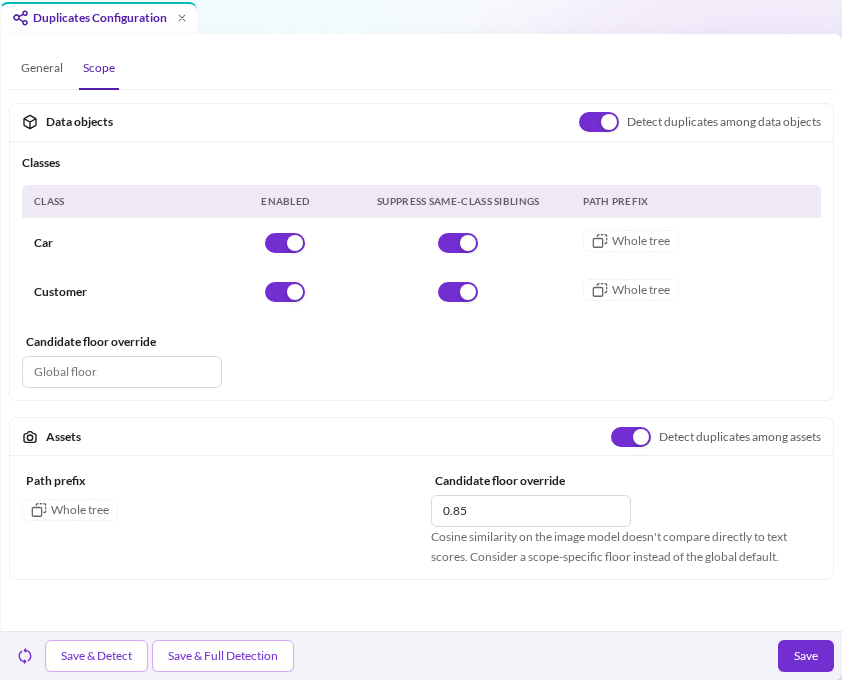

Scope tab

What is looked at.

Data objects

Detect duplicates among data objects switches the scope on, then each class is configured in its own collapsible section: the header holds its switches, the body its Folders table and its Exclude elements (PQL) field. Detection is opt-in per class: naming a class makes it eligible, its own Enabled toggle makes it run.

Field	Option	Default	Description
Enabled	enabled	off	Detect duplicates for this class.
Suppress same-class siblings	suppress_same_class_siblings	on	Suppress a same-class sibling, or anything in its subtree, that shares a data object parent with the reference. On for variant-shaped classes; off for classes where same-folder matches are exactly the point, see Structural filters.
Folders	paths	whole tree	Include and exclude folders for this class, see Folder rules.
Exclude elements (PQL)	exclude_pql	empty	PQL query against this class's index; matching objects are excluded from duplicate detection, see Exclusion query (PQL).

The selectable classes are those configured under embeddings; a class embeddings does not cover is rejected on save.

Assets

Detect duplicates among assets covers images only. The assets card holds its Folders table, see Folder rules, and its Exclude elements (PQL) field (assets.exclude_pql), see Exclusion query (PQL).

Folder rules

Folder rules are the simple location pre-filter; for anything that is not a folder, add an exclusion query on top. Each rule names a folder and either includes or excludes it together with its subtree. As with workspaces, the deepest rule covering an element decides, so an included tree can exclude its inbox folder and re-include a folder below that. Without an include rule, everything outside the excluded folders is in scope; without any rule, the whole tree is.

• Rules apply to references and members in both tiers: a group never contains an element outside them. Fuzzy detection applies them inside the kNN request, before candidates are counted.
• A folder covers itself and its subtree: /Products does not cover /Products-Old. Paths compare case-sensitively in detection and withdrawal alike, so a YAML rule must spell the folder exactly as it is stored.
• Narrowing the rules needs no full run: the next run withdraws groups whose reference is outside them and removes outside members from the rest; a group left with its reference alone is withdrawn. Widening them needs a full run, as elements outside the old rules were never analysed.

pimcore_backend_power_tools:
    duplicates:
        assets:
            paths:
                - { path: /Product Images }
                - { path: /Product Images/Inbox, mode: exclude }
        objects:
            classes:
                Car:
                    enabled: true
                    paths:
                        - { path: /Test Data, mode: exclude }

path_prefix is deprecated since 2026.3.2 and will be removed in the next major release. It is read as a single include rule; a stored configuration is rewritten to paths on its next save.

Exclusion query (PQL)

The advanced filter on top of the folder rules: a PQL query per class and one for assets. Elements matching it are excluded from duplicate detection.

pimcore_backend_power_tools:
    duplicates:
        objects:
            classes:
                Car: { enabled: true, exclude_pql: 'objectType = "actual-car"' }
        assets:
            exclude_pql: 'fullPath like "/Archive/*"'

• References and members, both tiers. Like the folder rules, a matching element is never probed as a reference and never retrieved or stored as a member.
• Index. A class's query is translated against that class's own index (so class fields resolve) and only ever applies to that class; the assets query runs against the asset index.
• Validation. Saving through Studio translates every non-empty query, also for disabled classes and scopes, and rejects an invalid one with 422 naming its location (e.g. objects.classes.Car.exclude_pql). YAML values and stored configurations are not translated on read; a query that has become invalid fails the affected scope's detection steps with a message naming it.
• Validation API. POST /pimcore-studio/api/bundle/backend-power-tools/duplicates-configuration/exclusion/validate (admin only) with {"entity": "Car", "pql": "..."} (entity is asset or an embedded class) answers {"valid": false, "message": "...", "position": 5, "token": "="} using the same rules and limits as saving; position/token are only set for parse errors. An unknown entity answers 422. Saving an invalid query answers 422 with Studio's violations list, propertyPath being assets.excludePql, objects.classes.<Class>.excludePql, or objects.classes for the combined size limit.
• Size limit. A translated query, and the combined queries of the objects scope, may not exceed 8192 bytes of JSON. Relation sub-queries (relation:Class.field ...) are resolved to an inline id list when translated, so a broad sub-query exceeds this quickly — filter on a direct field instead. The limit is checked after translation: generic-data-index first fetches every matching related id (paged, without an upper bound), so a very broad sub-query costs that fetch once per save attempt, or once per detection step when it only grew too large after saving (the scope then fails until fixed). Queries chaining several hundred AND/OR conditions are also rejected (JSON nesting depth).
• Pre-filtering. The exclusion is applied inside the kNN request, like the folder rules, so excluded near-duplicates do not use up candidates per probe (for object classes together with the class gate, which nested text vectors need for a negation to apply). On OpenSearch this only works for exact leaf queries (=, !=, <, > and combinations); a query containing like, QUERY(...) or empty/null checks is applied after retrieval instead, where excluded neighbours can crowd out real ones — raise candidates per probe if that matters.
• When it applies. Every run, incremental included, first withdraws stored groups whose reference or members now match; review decisions are kept, see Coupling to the embeddings configuration. Adding a query therefore needs no full run. Changing or removing a non-empty query needs one: elements it excluded were never analysed, so an incremental run is refused until a full run for that scope completes. Disabling a class is not a change for this rule, and its filter is still remembered when the class is re-enabled. While an analysis is queued or running, saving a changed exclude_pql is rejected (422), because a run records its filters at start.
• Relation sub-queries are resolved per detection step. Each step (exact, fuzzy, withdrawal) resolves them once, so related data changed during a run can apply to later steps only. If related data changes which elements match, the query text stays the same and no full run is enforced; run --full after such data changes.

Candidate floor override

Both scopes can override the global candidate floor. Text and image scores live on different scales — cosine similarity on the image model does not compare directly to MinHash scores — so one floor rarely fits both; the editor says so next to the asset field. Lowering an override requires a full run, like the global one.

Choosing the embedding model (usage)

There is no editor field for this, on either scope. Left unset, detection always uses the canonical dedup usage for the modality — object_dedup for data objects, image_dedup for assets. That choice is deterministic: it never scans for another usage of the same modality, so a second same-modality model cannot make detection ambiguous, and a run is blocked with an error if the canonical usage is not configured under embeddings.usages.

usage is therefore an explicit override, needed when you want detection to use a usage other than the canonical one. It must name a registered usage of the matching modality:

pimcore_backend_power_tools:
    duplicates:
        objects:
            usage: my_other_text_usage

Coupling to the embeddings configuration

The duplicates configuration is not self-contained: it takes its classes and its model from the embeddings configuration, so a change there ripples through in two ways.

A class removed from the embeddings scope. On read it is stripped out of the duplicates classes and a warning is logged; a save that still names it is rejected. Detection stops using it immediately, and its existing groups are withdrawn on the next run.

Removing image from the embedded asset types, or disabling embeddings entirely. The asset scope is paused rather than broken: the read path forces its enabled to false, and a save that tries to enable an unavailable scope is rejected.

caution

Withdrawal is destructive, not a pause — the groups are deleted, not hidden. Re-enabling the class or the embeddings switch only makes the scope eligible again; rebuilding its groups needs a full run. Review decisions are stored per element pair, independent of groups, and are never deleted by a withdrawal: a decline applies again when a rebuilt group has the same reference and neither element's content changed. A decline made in a group whose reference later changes does not appear in the new group.

Where the configuration is stored

Like the embeddings configuration, this is a Pimcore location-aware configuration.

pimcore_backend_power_tools:
    config_location:
        duplicates:
            write_target:
                type: settings-store          # default; also: symfony-config, disabled
            read_target:
                type: ~                       # default; also: settings-store, symfony-config

Setup	Behaviour
Defaults, as shipped	Reads container config first, settings store as fallback — a hand-written pimcore_backend_power_tools.duplicates YAML node therefore takes over and the editor turns read-only. Saves go to the settings store.
write_target.type: symfony-config	Saves write YAML into var/config/backend_power_tools_duplicates/, loaded back into the container config. Writing is only permitted in debug mode, so production editors are read-only.
write_target.type: disabled	The editor is read-only everywhere; the configuration is deploy-managed.
read_target.type: settings-store	Reads come only from the settings store; a YAML duplicates node is ignored entirely.
read_target.type: symfony-config	Reads come only from YAML; the settings store is ignored.

caution

Pointing read_target and write_target at different locations makes the editor write where reads never look, and saves appear to vanish. Pick a matching pair unless you know exactly why not.

Deploy-time: duplicates_execution

How hard a run is allowed to push is never stored or editable in Studio — these are cluster operations knobs, not content configuration:

pimcore_backend_power_tools:
    duplicates_execution:
        budget:
            max_elements_per_run: 0     # 0 = unlimited
            max_runtime_seconds: 0      # 0 = unlimited
        cluster_courtesy:
            throttle_ms: 0              # pause between index requests
            request_timeout_ms: 30000   # per-request timeout on the search engine
        stale_worker_threshold_seconds: 1800   # 0 = disabled

Option	Default	Description
budget.max_elements_per_run	0 (unlimited)	Caps how many elements one fuzzy sweep invocation (the fuzzy tier of one scope, or one fuzzy recovery retry) processes before stopping at its checkpoint. Not a whole-job limit. The exact tier is not counted and not limited by it.
budget.max_runtime_seconds	0 (unlimited)	Caps how long one sweep invocation (one tier of one scope, or one recovery retry) may take before it stops at its checkpoint. Not a whole-job limit.
cluster_courtesy.throttle_ms	0	Pause between index requests. Detection shares the search thread pool with Studio search and production kNN queries, so a busy cluster may need headroom; raising this trades run duration for it.
cluster_courtesy.request_timeout_ms	30000	Per-request timeout on the search engine, for exact-tier aggregation pages, fuzzy anchor reads and fuzzy probes, so one pathological query cannot hold a search thread indefinitely. A request that hits the timeout, or comes back with a failed shard, fails the sweep step: its results are partial, so the run ends finished with errors rather than checkpointing past what it missed.
stale_worker_threshold_seconds	1800	How long a running analysis job may go without activity before the analysis status flags staleWorkerSuspected, so a dead worker is shown instead of hidden. Activity is the newer of the job run's last update and the latest page checkpoint any sweep wrote, so a long sweep that keeps checkpointing is not flagged. 0 = disabled.

Both budgets stop a sweep at its checkpoint, never mid-page, so nothing past the checkpoint is recorded as done. The runtime budget applies to both tiers; the element budget applies to the fuzzy tier only. Both are measured per sweep invocation, not per job: the exact and fuzzy sweep of each scope, and each recovery retry, start their own timer, and every fuzzy sweep its own element count.

A job run keeps a single, tier-tagged resume cursor, and the exact tier runs before the fuzzy tier. A retry within the same job run therefore only resumes from a checkpoint of its own tier: once the fuzzy tier has checkpointed, a retry of a failed exact sweep starts that sweep from the beginning.

caution

A budget cutoff is not a way to spread one pass over several maintenance windows. The resume cursor is stored per job run, and a new invocation — CLI, cron or Studio — creates a new one, so it starts the sweep from the beginning. A budget small enough to cut a full pass short will keep re-scanning the same first elements, never reaching the rest. Size every budget you enable so each sweep can finish: max_runtime_seconds for the longest sweep of either tier, and max_elements_per_run for the largest scope the fuzzy tier sweeps.

Defaults reference

The seeded configuration leaves most options unset; these are the effective defaults the configuration tree fills in on read.

Option	Effective default
enabled	false
candidate_floor	0.70
review_threshold	0.70
candidates_per_probe	50
max_probe_chunks	3
max_probe_chunks_full	1
max_members_per_group	~ → follows candidates_per_probe
objects.classes	{} → no class detected until named and enabled
objects.classes.*.enabled	false
objects.classes.*.suppress_same_class_siblings	true
objects.classes.*.paths	[] (whole tree)
objects.classes.*.exclude_pql	'' (nothing excluded)
objects.usage / assets.usage	~ → canonical object_dedup / image_dedup usage
objects.candidate_floor / assets.candidate_floor	~ → the global candidate_floor
assets.paths	[] (whole tree)
assets.exclude_pql	'' (nothing excluded)
